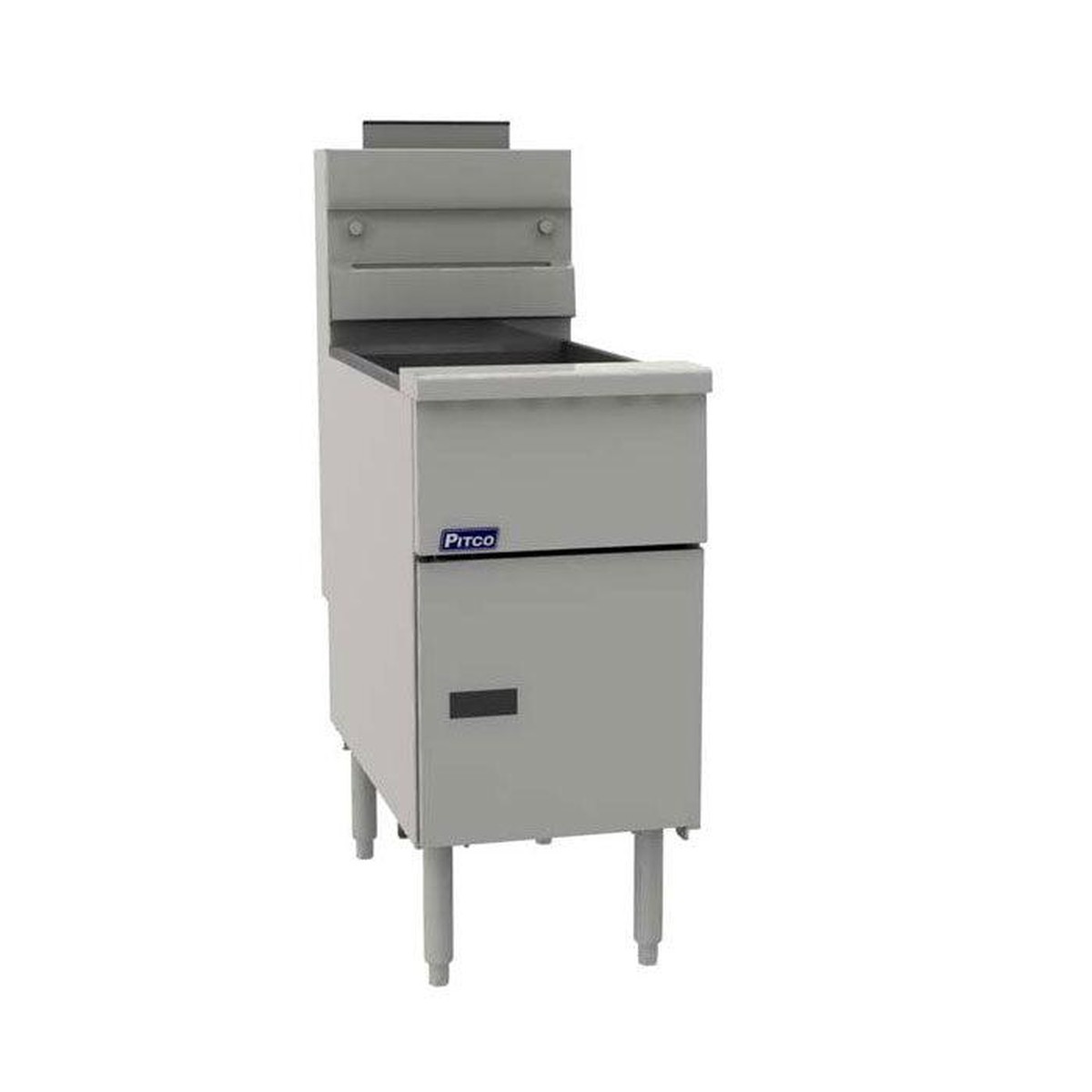

Pitco VF35S 35 Lb. Natural Gas Tube Fired Floor Fryer – 70,000 BTU

CONSTRUCTION

• Welded tank with an extra smooth peened finish ensures easy cleaning.
• Long lasting, high temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion.
• Standing pilot light design provides a ready flame when heat is required.
• Stainless steel front, door, sides and splash back.

CONTROLS

• Solstice burner/baffle design.
  • Increases cooking production
  • Lowers flue temperature
  • Improves working environment
  • Generates more production per BTU
• Thermostat maintains selected temperature automatically between 200F (93C) and 400F (190C).
• Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve.
• Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
• Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.

OPERATIONS

• Front 1-1/4″ NPT drain valve, for quick draining
