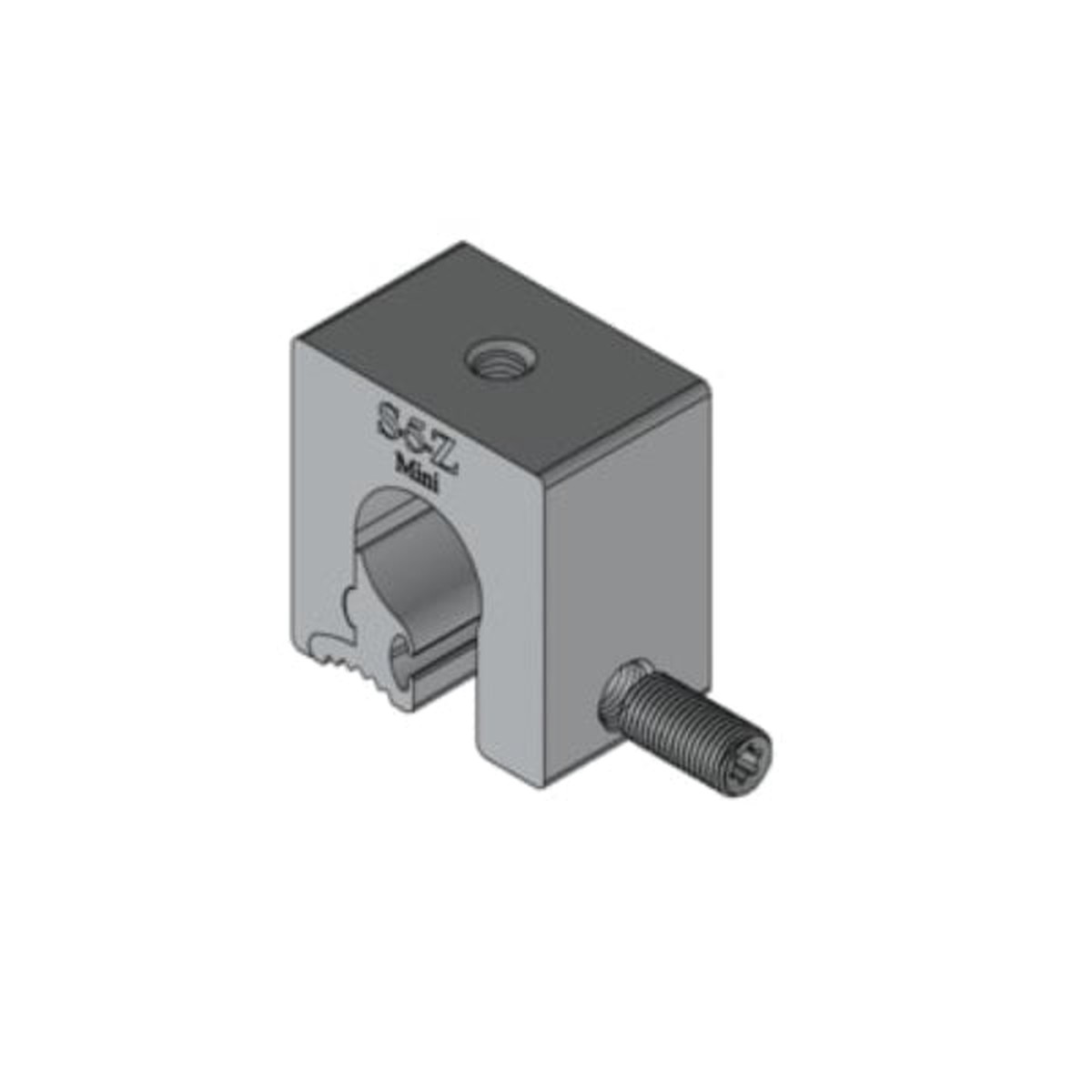

S-5-Z Mini Metal Roof Clamps

TheZ Miniclamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

TheZ Miniclamp is a bit shorter than the standardZwithone setscrew rather than two.

All standard and Mini clamps undergo rigorous load testing.Negative load normal-to-seamtesting (pull-up) is performed on all Mini clamps, andparallel-to-seamtesting (drag load) is performed on all standard clamps.

Specifications:

• Specially designed to fitZip-Rib,BEMO,Kalzipand similar profiles with a round bulb seam configuration and seam diameters of 7/8 (22 mm)
• Two-piece clamp designmeans you can easily install anywhere along
  the rib
• Light and medium-dutyapplications, such as utility mounting
• Smaller than the standard S-5-Z
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
